AX-210PN
特性• 2-Way Variable Curvature Line Array • MMSS Technology (Mirror-Image Mechanical Suspension Technology) • PM4 Diaphragm Technology • MALTCROSS Technology
应用场合
AX-210PN
-
产品描述
The AX-210PN is a two-way, variable-curvature line array system featuring two 10-inch weather-resistant woofers and two 1.4-inch high-frequency drivers. The woofers incorporate MMSS (Mirror-Image Mechanical Suspension System) and MALTCROSS technologies. MMSS ensures symmetrical positive and negative excursion of the moving assembly, thereby achieving significantly lower harmonic distortion. MALTCROSS represents the latest advancement in heat dissipation technology; our objective in addressing thermal management is to ensure that the drivers deliver consistent, reliable, and optimal performance within the system—maximizing overall Sound Pressure Level (SPL) while guaranteeing stability. The high-frequency drivers utilize PM4 diaphragm technology, which employs a cutting-edge polymer material—previously unprecedented in the audio industry—to establish a stronger bond between the dome and the voice coil former. This design enhances the driver's performance during prolonged, high-power operation, resulting in a more natural and authentic sound reproduction.
-
详细参数| Usable bandwidth( -10dB ) | 80 - 20,000 Hz |
| Horizontal Coverage | 120º |
| Vertical Coverage | Depends of the array elements and curvature |
| Low Pitch | |
| Characteristic | 2 x 10" Woofer |
| Impedance | 4Ω |
| Frequency Response | 60 - 1,000 Hz |
| Axial Sensitivity (dB SPL,1Watt@1m) | 103 dB |
| Power handling(AES) | 800 W |
| Maximum (continuous) | 135 dB |
| Maximum (peak) | 141 dB |
| High notes | |
| Characteristic | 2 x 1.4" Tweeter |
| Impedance | 16Ω |
| Frequency Response： | 800 HZ-20.000 HZ |
| Axial Sensitivity(dB SPL,1Watt@1m) | 114 dB |
| Power handling(AES) | 150 W |
| Maximum (continuous) | 139 dB |
| Maximum (peak) | 145 dB |
| Physical data | |
| Hanging Accessories | Integral Type |
| Linear Array Vertical Angle Range | 0º to 10º (1ºIncrease Amount) |
| W x H x D | 68 x 32 x 72 cm |
| Weight(net) | 48 kg |
| Front Steel | Steel grid with anti-corrosion coating and foam |
| Cabinet | First grade Baltic birch plywood |
| Connectors | 2 x NL4 |
| Finish | warnex black textured coating |
-

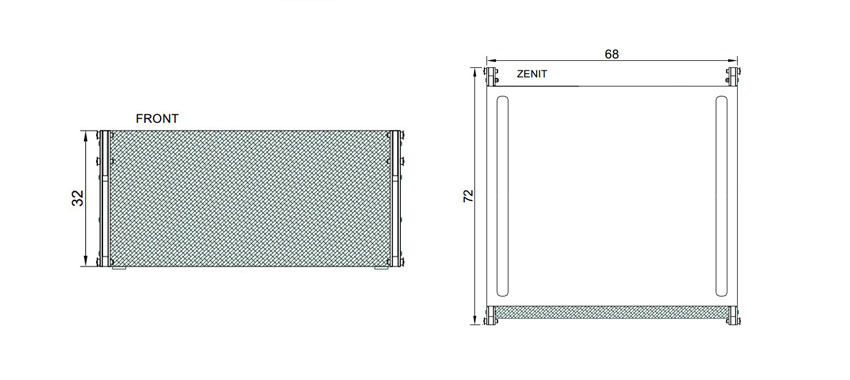

尺寸规格
-
