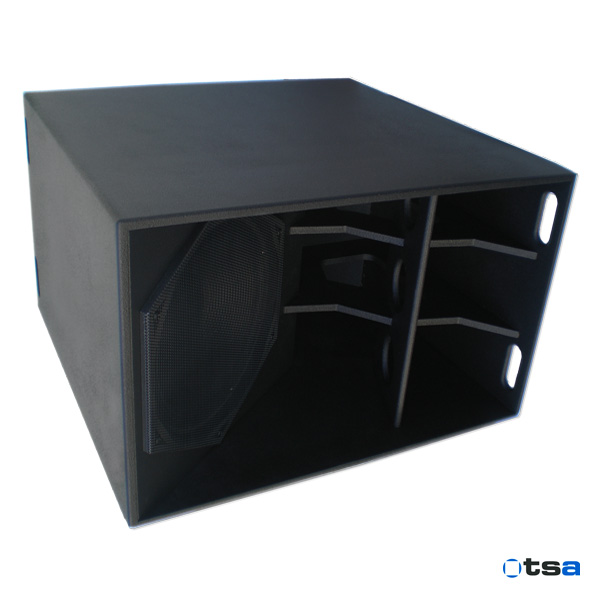

HL-118S
Driver: 1 x 18" neodymium driver Frequency response: 29Hz–230Hz Power (AES): 1600W Maximum SPL: 143dB (peak) Nominal impedance: 8Ω
-

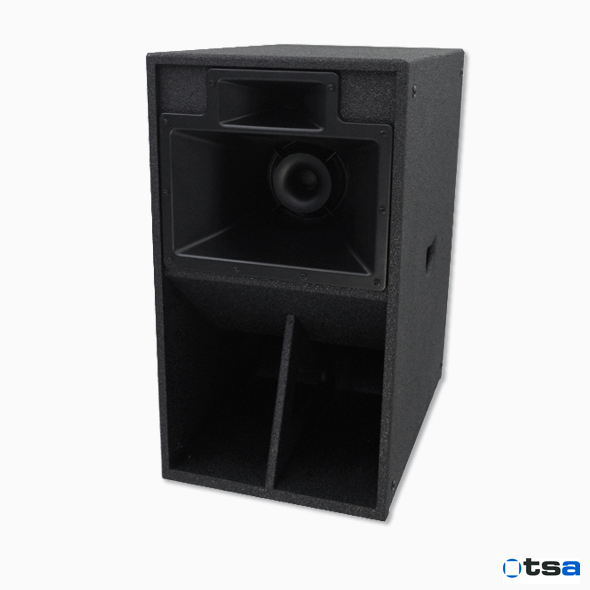

HL-1261
Drivers: 1 x 12" (LF), 1 x 6.5" (MF), 1 x 1" (HF) Frequency Response: 85–20,000 Hz Power Handling (AES): LF × 500W (AES), MHF × 200W (AES) Max SPL: 140 dB (peak) Nominal Impedance: 8Ω
-

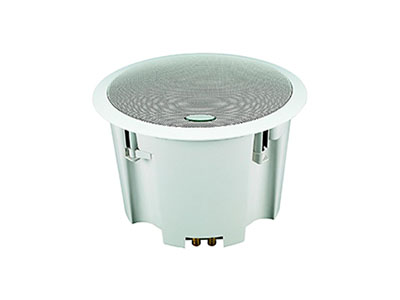

CL5/T
Speaker: 1 x 5" Frequency Response: 55 – 20,000 Hz (+3dB, -10dB) Power: 30W (8Ω); 1.5W, 3W, 6W (100V) Sensitivity: 89dB Nominal Impedance: 8Ω Horizontal coverage angle: 90°
-
XTR Series
• Compact and ultra-lightweight 2U design • Input link switch: allows an input channel to be linked to another channel • 2-channel power output: 2 x 6000 W at 4Ω • Next-generation QuantaPulse™ switching power supply • Neutrik Speakon speaker output connectors • Smooth, precise potentiometers for easy volume adjustment • Indicators for each channel: ICL, PMS, High-temp, and Signal; plus Power-on and Standby indicators • Switchable ICL (Intelligent Clip Limiter) for each channel • Switchable subsonic high-pass filter for each channel (selectable 30 Hz or 50 Hz cutoff) • Three selectable gain settings (32 dB, 38 dB, 44 dB) • Dual temperature-controlled, continuously variable cooling fans (rear-to-front airflow) • High-performance power components (high SOA rating)
-
Z Series
• Unrivaled audio quality; high-efficiency Class H design • 2- and 4-channel models with power ratings from 1000W to 4000W • Ultra-lightweight (6kg) and compact (25cm depth) • Next-generation QuantaPulse™ switching power supply • Power Management System (PMS™) and Intelligent Clip Limiter (ICL™) • Inverted airflow design prevents dust accumulation on fans • Industry-standard Neutrik® XLR and Speakon® connectors • Comprehensive protection (ICL, PMS, SSP, turn-on, Temp, DC, etc.) • Sealed potentiometers with detents • Selectable dual-channel or bridge modes • Temperature-controlled, rear-to-front cooling fans
-
S Series
• Indicators for ICL, PMS, high temperature, signal, power-on, and standby on each channel • Highly versatile configuration options with additional optional modules • Switchable ICL (Intelligent Clip Limiter) on each channel • Switchable subsonic high-pass filter (30 Hz or 50 Hz) on each channel • Three selectable gain settings (26 dB, 32 dB, 38 dB) • Selectable dual-channel or bridge mode
-
V Series
• Dual-stage switching power supply with PFC QuantaPulse™ monitoring • Large blue LCD user interface for digital control • USB port for amplifier firmware updates and DSP control connectivity • Digital potentiometer with rotary encoder control • Power Management System (PMS™)
-
T Series
• All channels bridgeable in pairs • Four selectable gain settings (26, 32, and 38 dB) • Selectable subsonic filter (35 Hz) for each channel • Intelligent, ultra-low-noise cooling system controlled by temperature and signal • Advanced thermal design featuring an air-tunnel chassis and direct mounting of power components to heatsinks • Direct output topology ensures superior loudspeaker control • Internal circuitry designed using state-of-the-art SMD technology • Balanced inputs with 0.1% impedance matching for effective noise rejection • High-quality electronic and mechanical components • Built-in ICL™ (Intelligent Clip Limiter) • Advanced FCM™ and SSP™ protection systems • Detented, smooth-action volume controls • High-efficiency, two-step Class H audio topology • Overload protection, signal level, and clip indicators for each channel • Standby and operation status indicators • Compact and distinctive power supply design • Low power consumption and heat dissipation, suitable for installation in diverse environments • Factory-preset for worldwide voltage compatibility • Laser-cut front panel • Standard 2U height
-

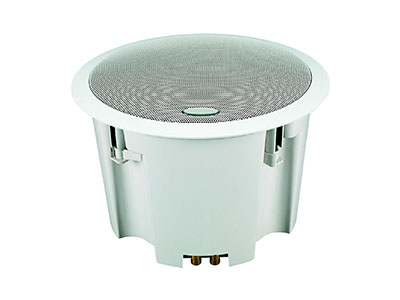

CL8/T
Speaker: 1 x 8" Frequency Response: 40 – 20,000 Hz (+3dB, -10dB) Power: 55W (8Ω); 1.5W, 2.5W, 5W, 10W (100V) Sensitivity: 91dB Nominal Impedance: 8Ω Horizontal Coverage Angle: 90°
-

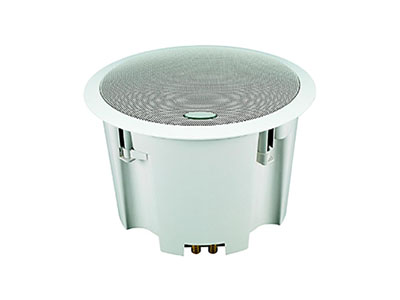

CL6/T
Speaker: 1 x 6.5" Frequency Response: 45 – 20,000 Hz (+3dB, -10dB) Power: 45W (8Ω); 1.5W, 2.5W, 5W, 10W (100V) Sensitivity: 89dB Nominal Impedance: 8Ω Horizontal Coverage Angle: 90°
-
Z-600
Speaker: 2 x 10" (LF), 6 x 1" (HF) Frequency Response: 80 – 20,000 Hz (+3dB, -10dB) Power Handling: 600W (AES), 1200W (Program) Sensitivity: 99dB Max SPL: 130dB (continuous), 136dB (peak) Nominal Impedance: 16Ω
-
Z-26F
Speaker: 2 x 10" (LF), 6 x 1" (HF) Frequency Response: 80 – 20,000 Hz (+3 dB / -10 dB) Power Handling: 600 W (AES), 1200 W (Program) Sensitivity: 99 dB Max SPL: 127 dB (continuous), 135 dB (peak) Nominal Impedance: 16 Ω
