Z-26F
特性• High-performance built-in two-way speaker • MMSS technology (Mirror-imaged Mechanical Suspension System)
应用场合
-
产品描述
The Z-26F is a high-performance, built-in two-way loudspeaker featuring dual 10-inch water-resistant woofers and six piezoelectric tweeters. The woofers utilize forced-air convection cooling and MMSS technology to enhance dynamic performance, delivering high linearity and low harmonic distortion. The piezoelectric tweeters offer excellent linearity, minimal distortion, and superior transient response, resulting in clear, natural high-frequency reproduction.
The Z-26F is an ultra-slim line array system characterized by its compact profile and lightweight design; excluding mounting hardware, it measures just 46.6 liters in volume, weighs 14 kg, and has a depth of 16 cm. Capable of delivering a maximum sound pressure level (SPL) of 135 dB, it meets the rigorous demands of high-performance sound reinforcement venues.
-
详细参数| Frequency Response(-10dB ) | 80 - 20,000 Hz |
| Preset Frequency | 100 - 20,000 Hz |
| Horizontal Coverage | 90º |
| Vertical Coverage | Depends on the configuration. |
| Low pitch | 2 x 10" trumpet |
| High notes | 6 x 1”Piezoelectric tweeter |
| Axial sensitivity (dB SPL,1Watt@1m) | 100 dB |
| Impedance | 16Ω |
| Power handling (AES) | 600 W |
| Sensitivity | 99 dB |
| Maximum(continuous) | 127 dB |
| Maximum (peak) | 135 dB |
| Physical data | |
| Hanging Accessories | Steel structure |
| Vertical angle range | 1º Steel structure |
| W x H x D | 52 x 56 x 16 cm |
| Weight(net) | 15 kg |
| Front Steel | Steel-coated grid and special foam |
| Cabinet | Baltic birch |
| Connectors | 2 x NL4 |
| Speaker Surface | Warnex black textured coating |
-

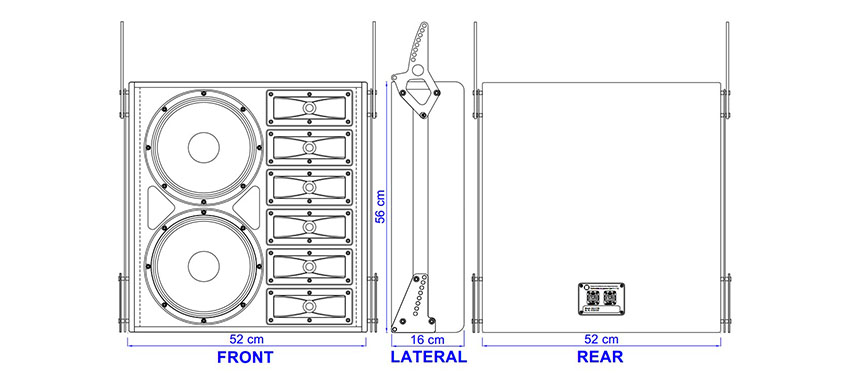

尺寸规格
-
