Z-600
特性• High-performance built-in two-way speaker • MMSS technology (Mirror-imaged Mechanical Suspension System)
应用场合
-
产品描述
The Z-600 is a high-performance, built-in two-way loudspeaker featuring dual 10-inch water-resistant woofers and six piezoelectric tweeters. The woofers utilize forced-air convection cooling and MMSS technology to enhance driver dynamics, delivering high linearity and low harmonic distortion. The piezoelectric tweeters offer excellent linearity, minimal distortion, and superior transient response, resulting in clear, natural high-frequency reproduction.
The Z-600 is an ultra-flat line array system characterized by its slim profile and lightweight design. Excluding mounting hardware, the unit has a volume of just 46.6 liters, weighs 19 kg, and measures 15 cm in depth. Capable of delivering a maximum sound pressure level (SPL) of 136 dB, it meets the demands of high-performance sound reinforcement applications.
-
详细参数| Frequency Response (-10dB ) | 80 - 20,000 Hz |
| Preset Frequency | 100 - 20,000 Hz |
| Horizontal Coverage | 90º |
| Vertical Coverage | Depends on the configuration. |
| Low pitch | 2 x 10" trumpet |
| High notes | 6 x 1” Piezoelectric tweeter |
| Impedance | 16Ω |
| Power handling (AES) | 600 W |
| Sensitivity | 99 dB |
| Maximum (continuous) | 130 dB |
| Maximum (peak) | 136 dB |
| Physical data | |
| Hanging Accessories | Integrated |
| Vertical angular range of a single line array | 1º Amount of increase |
| W x H x D | 56 x 54 x 15 cm |
| Weight(net) | 19 kg |
| Front Steel | Steel grid with anti-corrosion coating and foam |
| Cabinet | Baltic birch |
| Connectors | 2 x NL4 |
| Speaker Surface | Warnex black textured coating |
-

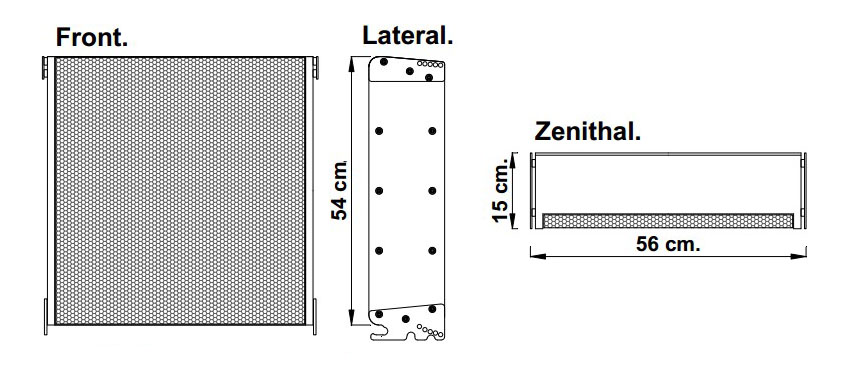

尺寸规格
-
