AX-112N
特性• 2-way Line Array • MMSS Technology (Mirror-Image Mechanical Suspension Technology) • MALTCROSS Technology
应用场合
-
产品描述
The AX-112N line array features a two-way system comprising one 12" woofer and one 1.4" high-frequency driver. The woofer incorporates MMSS (Mirror-Image Mechanical Suspension System) and MALTCROSS technologies. MMSS ensures symmetry between the positive and negative excursions of the moving assembly, thereby achieving significantly lower harmonic distortion. MALTCROSS represents our latest advancement in heat dissipation technology; our clear objective in addressing thermal management is to ensure that the driver delivers consistent, reliable, and optimal performance within the system—maximizing overall SPL while guaranteeing stability. The high-frequency driver utilizes advanced polymer materials to enhance performance and deliver a more natural sound.
-
详细参数| Frequency Response (+3dB, -10dB) | 50 - 19,000 Hz | |
| Preset Frequency | 80 - 19,000 Hz | |
| Horizontal Coverage | 110º | |
| Vertical Coverage | Depends of the array elements and curvature | |
| Low Pitch | 1 x 12" Woofer | |
| High notes | 1 x 1.4" Tweeter | |
| Impedance | 8 Ω | |
| Power handling (AES) | 650 W | |
| Sensitivity | 99 dB | |
| Maximum(continuous) | 130 dB | |
| Maximum (peak) | 136 dB | |
| Physical data | ||
| Hanging Accessories | Steel Materials | |
| W x H x D | 62.5 x 35.5 x 56 cm | |
| Weight(net) | 29 kg | |
| Front Steel |
|
|
| Cabinet | Finnish Birch | |
| Connectors | 2 x NL4 | |
| Finish | Warnex black textured coating |
| Steel grid with anti-corrosion coating and foam |
-

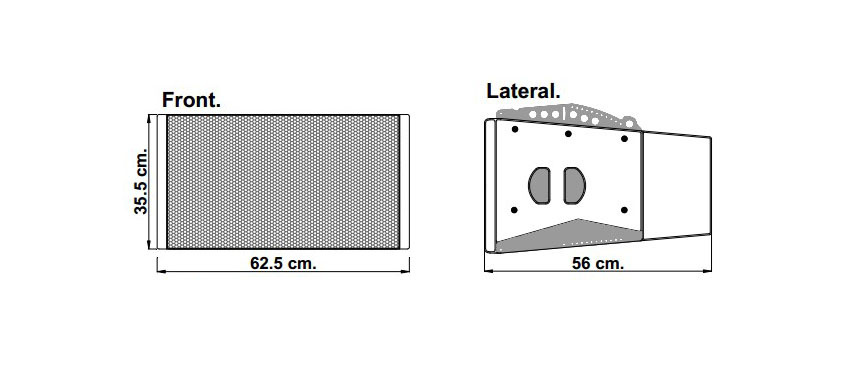

尺寸规格
-
