AX-112A
特性• 2-way Line Array • MMSS Technology (Mirror-Image Mechanical Suspension Technology)
应用场合
-
产品描述
The AX-112A line array features a two-way system comprising one 12-inch woofer and one 1-inch tweeter. The woofer incorporates MMSS technology (Mirror-Image Mechanical Suspension System), which ensures consistent positive and negative excursion of the moving components, thereby achieving lower harmonic distortion. The tweeter utilizes advanced polymer materials to enhance performance and deliver a more natural sound.
-
详细参数| Frequency Response(-10dB ) | 50 - 19,000 Hz |
| Preset Frequency | 80 - 19,000 Hz |
| Horizontal Coverage | 90º |
| Vertical Coverage | 40º |
| Low Pitch | 1 x 12" trumpet |
| High notes | 1 x 1" trumpet |
| Impedance | 8Ω |
| Power handling (AES) | 600 W |
| Sensitivity | 97 dB |
| Maximum (continuous) | 128.5 dB |
| Maximum (peak) | 134.5 dB |
| Physical data | |
| Hanging Accessories | Optional |
| W x H x D | 33 x 55 x 62 cm |
| Weight(net) | 29 kg |
| Front Steel | Steel grid with anti-corrosion coating and foam |
| Cabinet | First grade Baltic birch plywood |
| Connectors | 2 x NL4 |
| Finish | Warnex black textured coating |
-

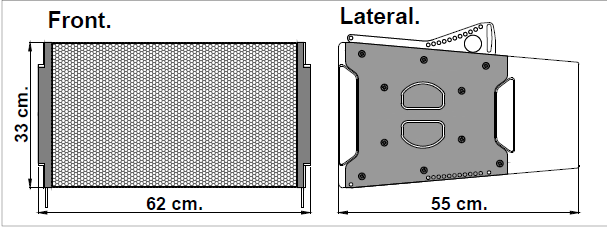

尺寸规格-
资料下载
