SB-18

特性
    • 18-inch subwoofer
    • MMSS technology (Mirror-image Mechanical Suspension System)
    • Maltcross technology
    • Waterproof driver

应用场合


-
产品描述
The SB-18 is a high-performance single 18-inch subwoofer featuring a weather-resistant 18-inch driver and incorporating MMSS (Mirror-image Mechanical Suspension System) and MALTCROSS technologies. MMSS technology ensures symmetrical excursion of the moving assembly, resulting in lower harmonic distortion. MALTCROSS is a state-of-the-art cooling technology designed to ensure consistent, reliable, and optimal driver performance within the system, maximizing total SPL while maintaining stability. Consequently, the SB-18 delivers high sensitivity and high SPL, adding powerful, impactful, and commanding bass to the sound system. Its compact enclosure design eliminates unwanted rear sound radiation, delivering high sound pressure levels and precise low-frequency reproduction.
-
详细参数

 Frequency Response(-10dB ) 35 - 170 Hz
Preset Frequency 35 - 80 Hz
Speaker 1 x 18"
Impedance
Power handling  (AES) 1400 W
Sensitivity 98 dB
Maximum (continuous) 132 dB
Maximum (peak) 138 dB

Physical data

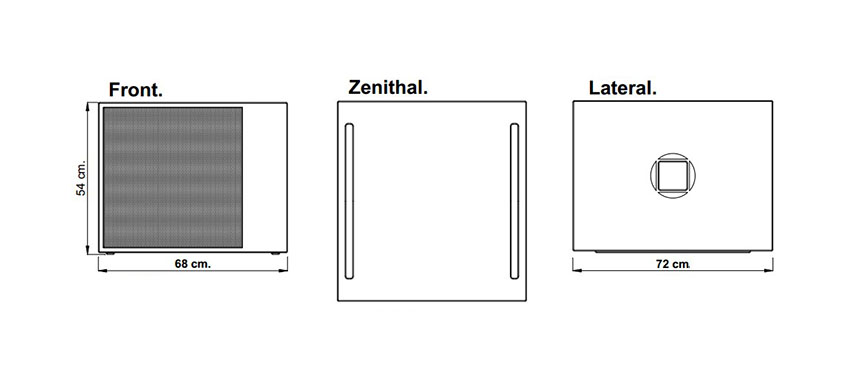

W x H x D 68 x 54 x 72 cm
Weight(net) 37 kg
Front Steel  Steel grid with anti-corrosion coating and foam
Cabinet Baltic birch
Connectors  2 x NL4
Speaker Surface Warnex  black textured coating

-
尺寸规格


  • -
